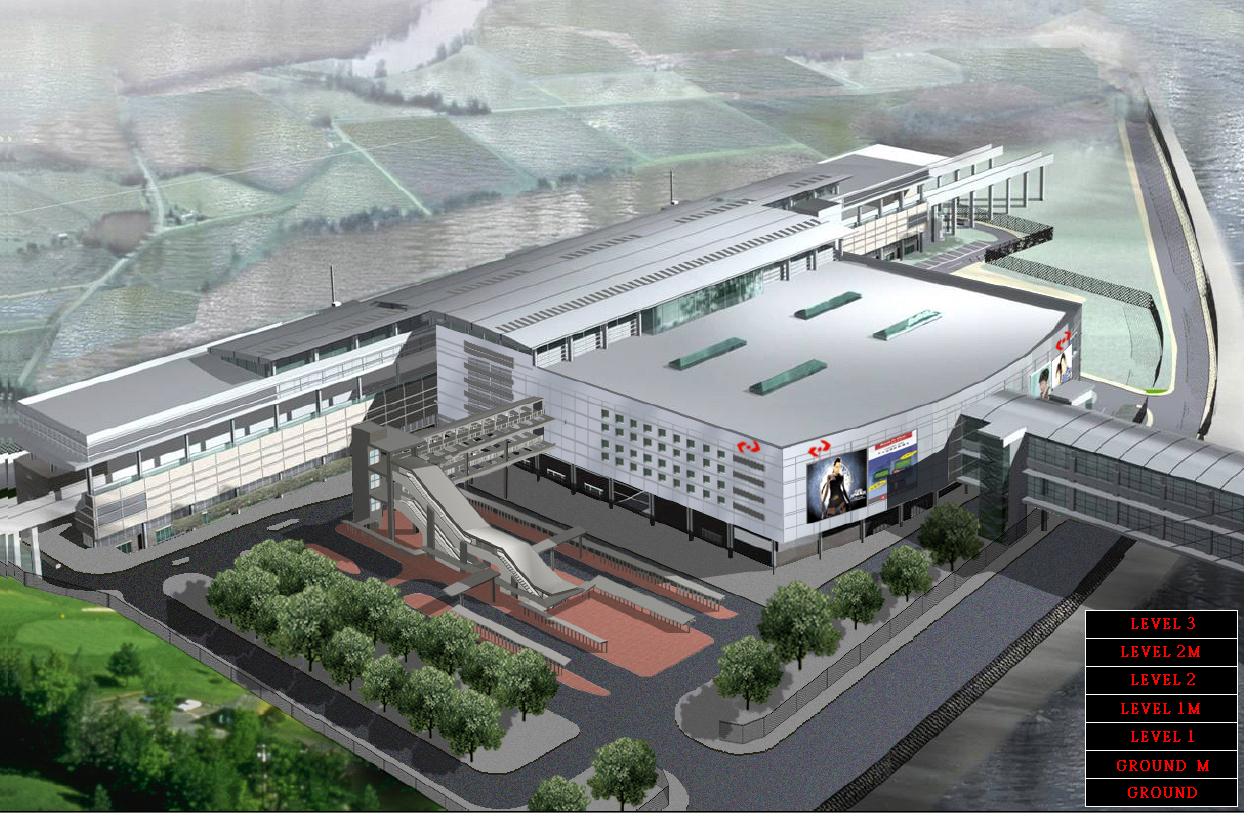

Lok Ma Chau MTR Station - 2007
Lok Ma Chau or Lokmachau (Traditional Chinese: 落馬洲) lies on the Hong Kong side of a border crossing between Hong Kong and mainland China. It lies near San Tin in the northwest New Territories on the Hong Kong side, and is opposite to Huanggang in Shenzhen. The Sham Chun River separates Hong Kong from China at this crossing, and a large area of marshes exists within the Closed Area buffer zone on the Hong Kong side, to which access is restricted (click on the co-ordinates link above-right for an aerial view of these marshes).
MEGAsys private CCTV/Alarm security management system for this terminal also BMS interface.
MEGAsys ISMS - Integrated Security Management System
The MEGASYS CCTV Management System is designed as conventional an expandable digital/analogue full matrix video switching Client/Server base system, Integrated with latest digitals codec technology, It can be configured from 1,000 video inputs by a multi video output channels to its fully expanded configuration supporting video switched to all digital/analogue video output channels. All video output channels support Chinese text insertion for camera identification labeling, presenting current date/time and other system/operator status information.
All system events can be interlock with CCTV/Access Control/Alarm system via MACRO PROGRAMMING, which allows total flexibility of system operation for a given alarm input. Control output circuits can be directly controlled by a given alarm input status, manual operation from pc terminal, or from virtually any system action that may occur.
MEGAsys in

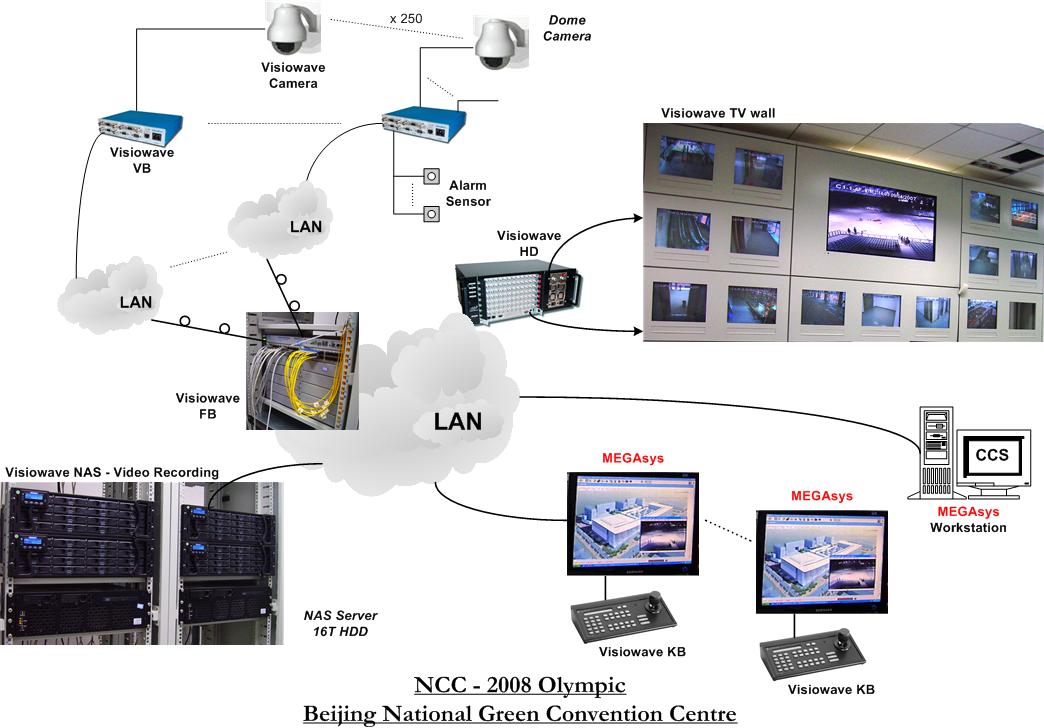

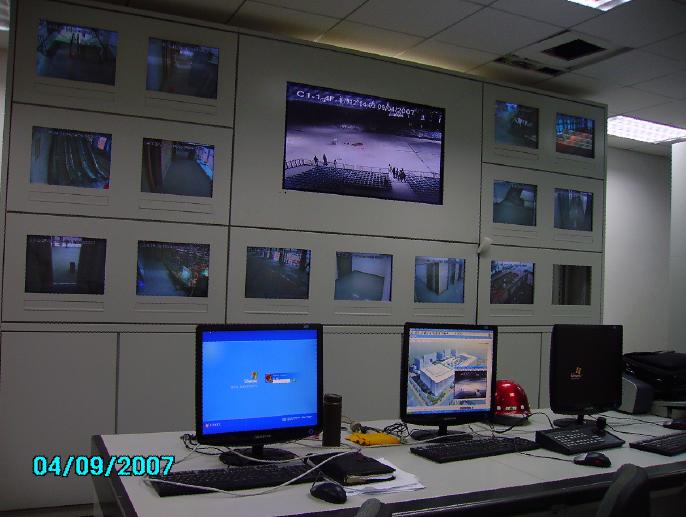

Beijing National Olympic Green Convention Centre - 2007

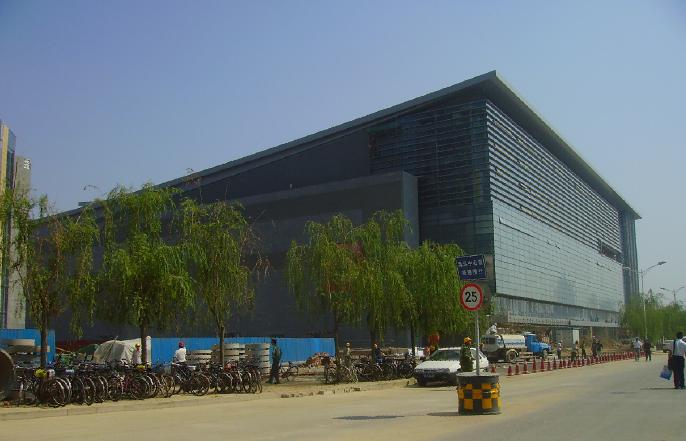

Beijing National Olympic Green Convention Centre
北京奥林匹克公园国家会议中心是2008年奥运会的主要场馆.该项目占地12.2ha,总体规划包括220 000m2的会议展览中心、260 000m2的商业零售及酒店设施.其中商业部分包括435 00m2的五星级酒店、32 000m2的商务酒店、95 000m2的办公楼和31 500m2的商业零售裙楼,它们都与会议中心相连接.
MEGAsys DVR/NVR Remote Mobile Kit (RMK)
MEGAsys DVR/NVR Remote Mobile Kit (RMK), operates on different wireless and mobile technologies, such as Wi-Fi, Wi-Max, GPRS, and 3G, which allows users to view the real-time monitoring image with their PDAs or Smartphones. RMK provides security in your hand and total solution for mobile surveillance. The mobile software can be easily installed with your mobile devices, and can also be quickly integrated with MEGAsys's line up of DVRs/NVRs.
New System Sub Keyboard
ET-KB3000s/3000
For all Matrix System and Digital System Alt-Keyboard

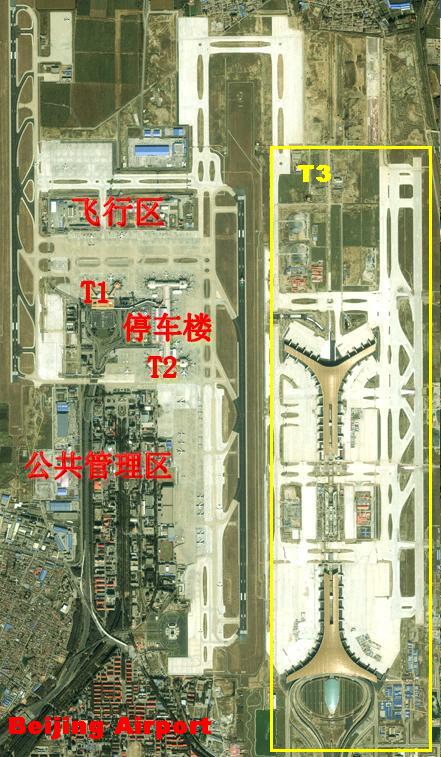

Beijing Capital International Airport BCIA - 2008
MEGAsys Integrated with T1/T2 CCTV to T3 new control console - Details...

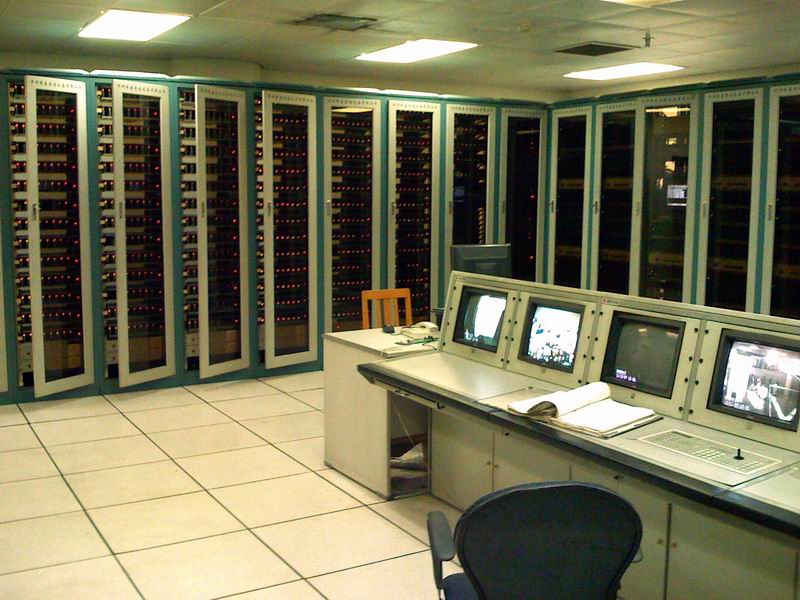

T1/T2 Main Control Room (Old)

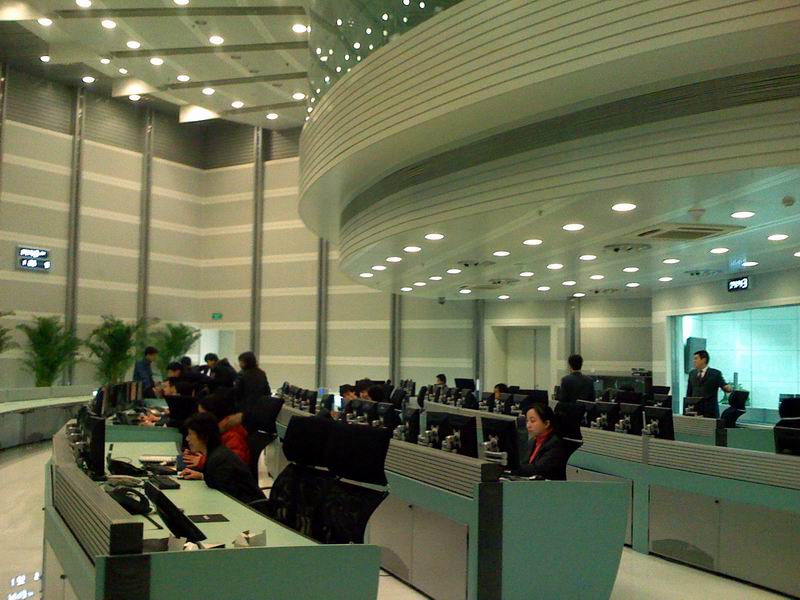

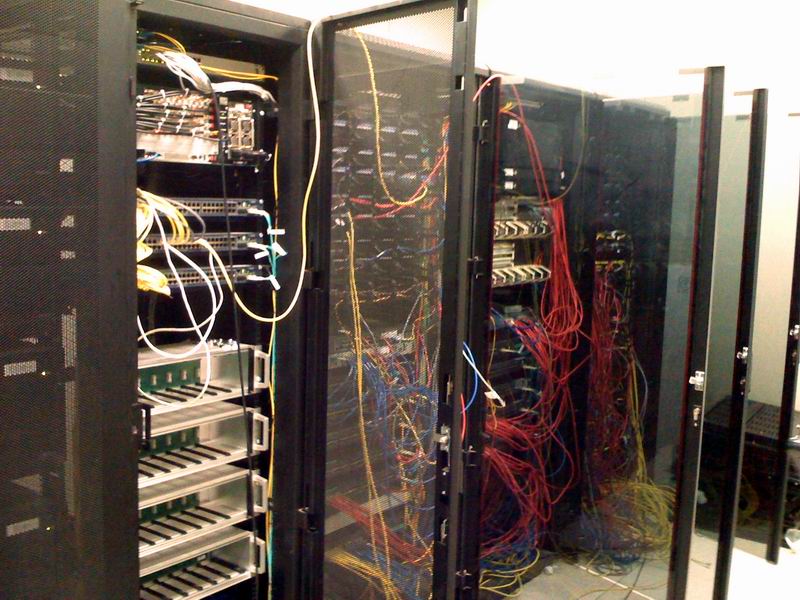

T3 Main Control Console (2008)

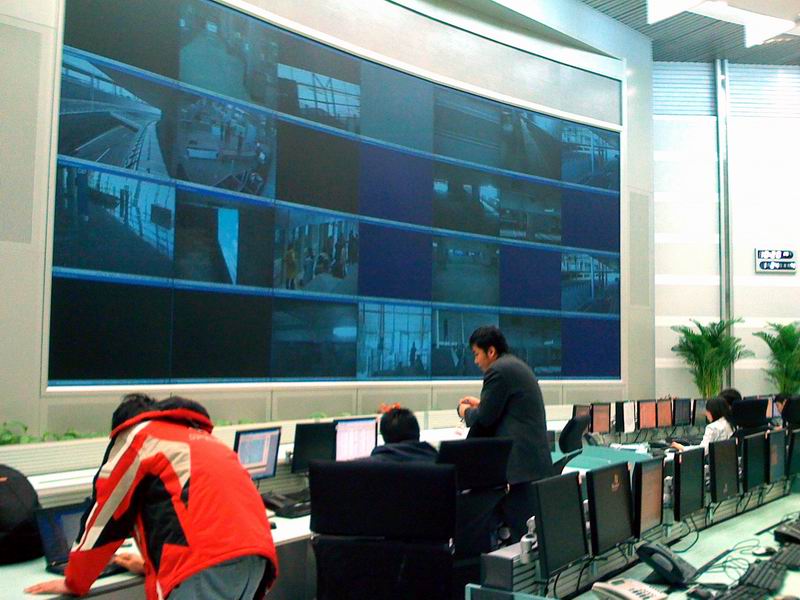

T3 Console TV Wall (7 x 4) 2008
Biometrics Palm Vein Reader for MEGAsys Access Control
How secure are your assets? Can your personal identification number be easily guessed? As we increasingly rely on computers and other machines in our daily lives, ensuring the security of personal information and assets becomes more of a challenge. If your bank card or personal data falls into the wrong hands, others can profit at your expense. To help deal with this growing problem, Fujitsu has developed a unique biometric security technology that puts access in the palm of your hand and no one else's.
Fujitsu's palm vein authentication technology consists of a small palm vein scanner that's easy and natural to use, fast and highly accurate. Simply hold your palm a few centimeters over the scanner and within a second it reads your unique vein pattern. A vein picture is taken and your pattern is registered. Now no one else can log in under your profile. ATM transactions are just one of the many applications of this new technology.
Fujitsu's technology capitalizes on the special features of the veins in the palm. Vein patterns are unique even among identical twins. Indeed each hand has a unique pattern. Try logging in with your left hand after registering with your right, and you'll be denied access. The scanner makes use of a special characteristic of the reduced hemoglobin coursing through the palm veins — it absorbs near-infrared light. This makes it possible to take a snapshot of what's beneath the outer skin, something very hard to read or steal.
Besides the high accuracy of a false rejection rate of 0.01% and a false acceptance rate of less than 0.00008 %(as of February, 2005), Fujitsu's contactless palm vein authentication offers a range of advantages over other biometric technologies.
MEGAsys OPC server is based on COM/DCOM technology following OPC specification and TCP/IP protocol on Ethernet and it can be used with 8c500/8c800L DI/DO controllers, access control and CCTV. The server provides reliable and high-performance communication with any other OPC client application. An easy-to-use configuration tool is included for quick set-up of the tags database. Fast, active OPC foundation member creates specific communication drivers according to customers requirements.
MEGAsys Integrated in Taiwan Airport T1,T2
Taiwan Airport, nucleus of Taiwan civil aviation, is located in the East-West District of area. It is easily accessible from the town centers. The terminal building offers a variety of convenient services including airliner operation, identification check, security inspection, banking, insurance, post office, telephone-telegraph, shopping, restaurant, and artifact display and sell facilities.
System integrated with difference brand MATRIXs - PanasonicSX850, Philips8800-8900, MAX1000 and DVRs to a standard platform for all CLIENTs workstation, TV wall daily surveillance operation.

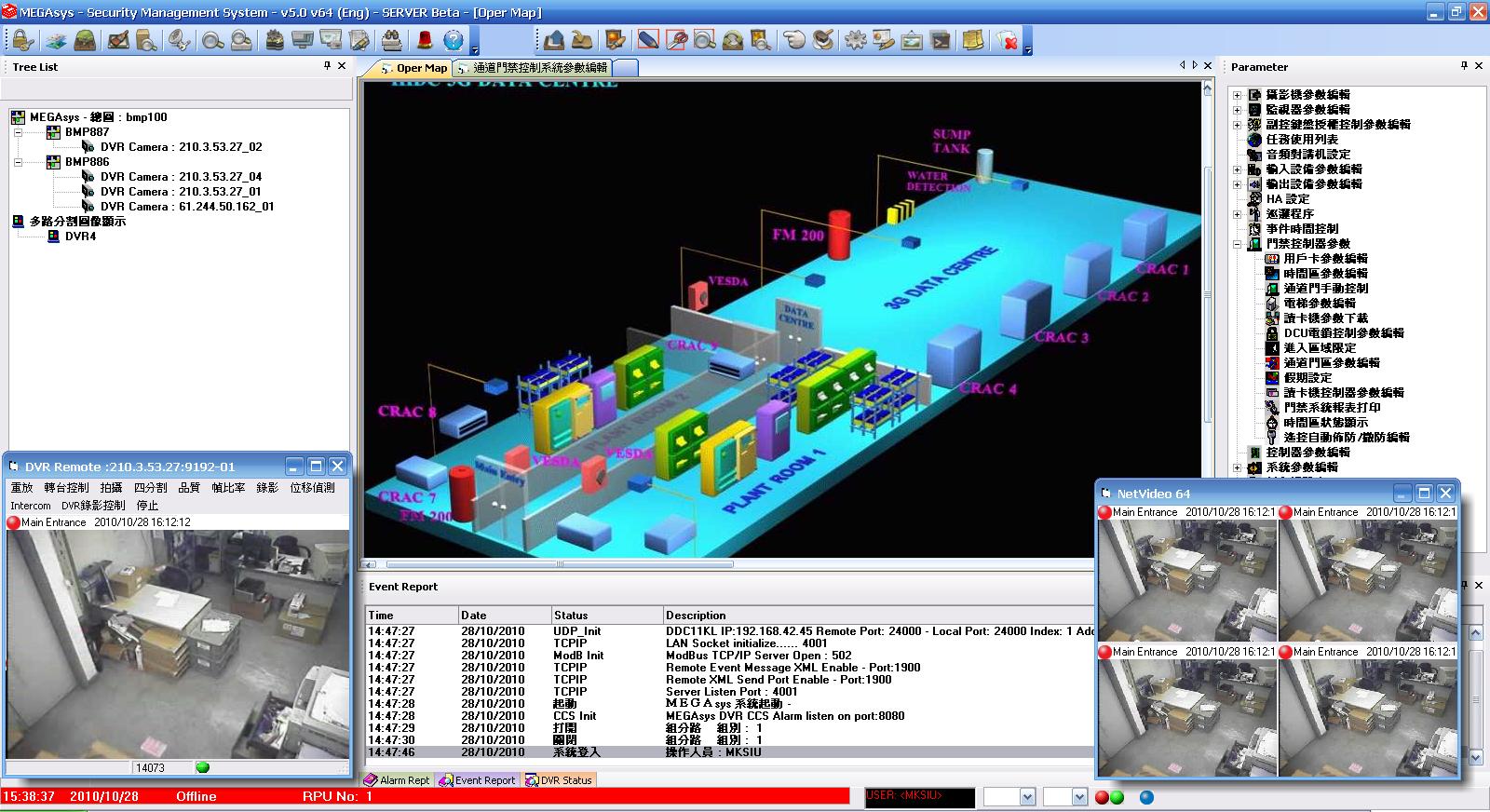

MEGAsys v5.0
- ready for the project .
NEW! (2021)

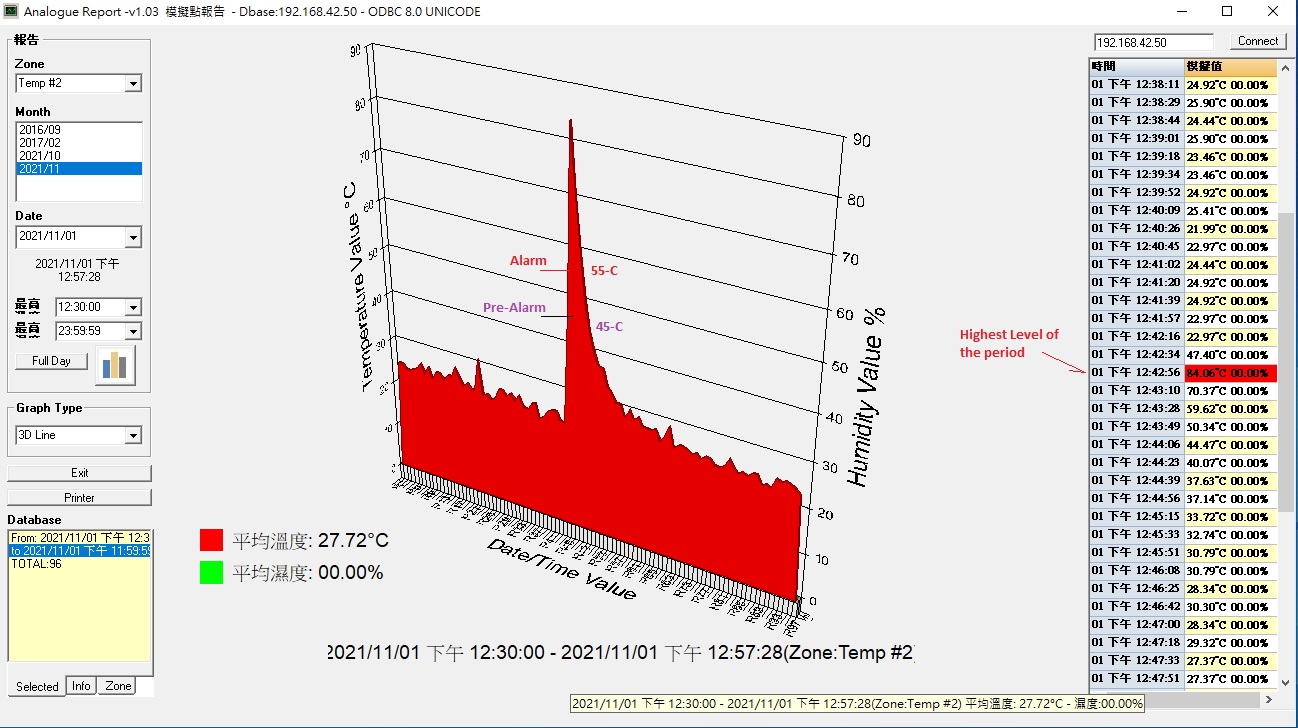

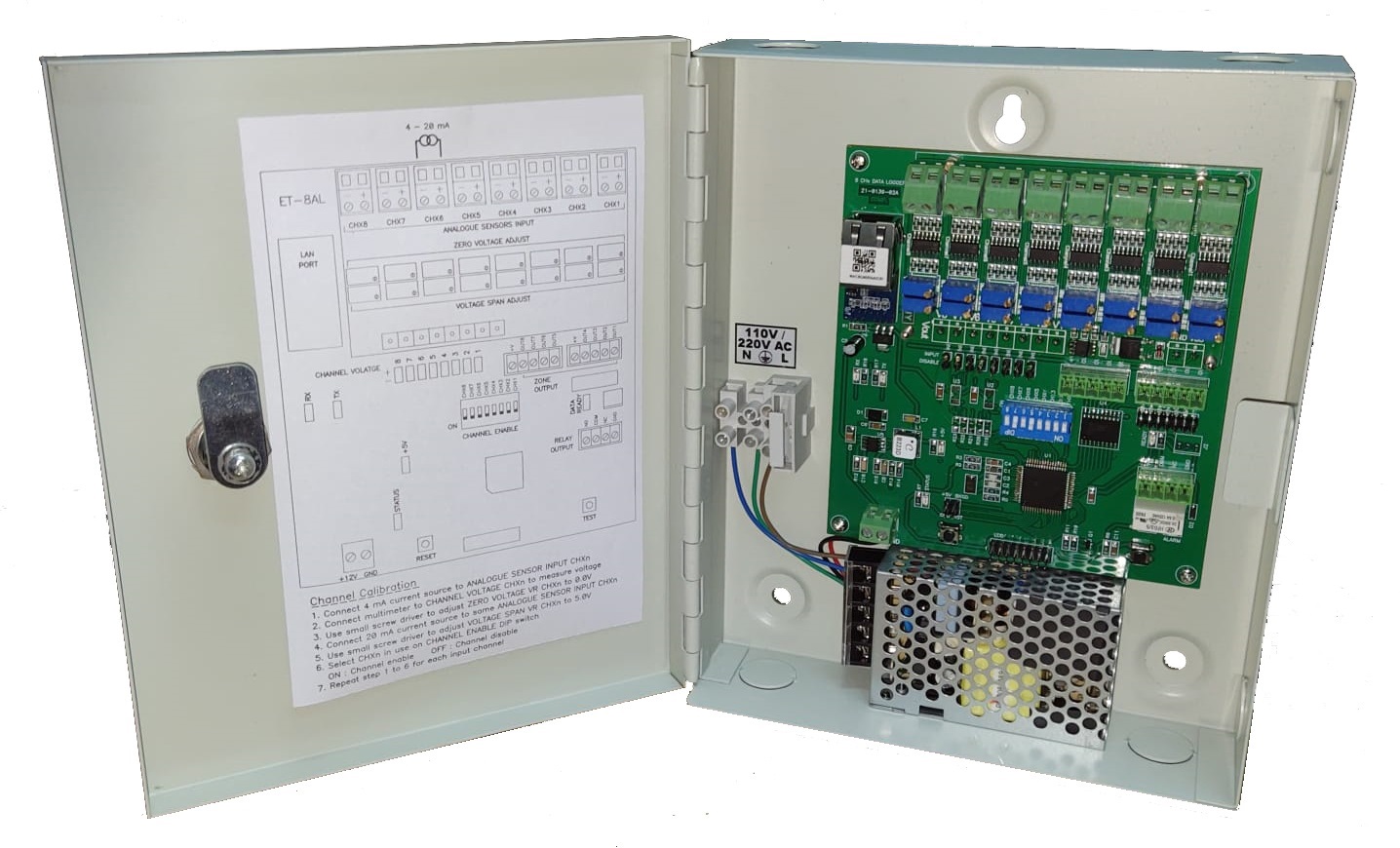

ET-8AL Analogure Panel
- 8 Zonea (4-20mA)
- 10/12 Bits A/D
- Pre-Alarm Setting
- Alarm Set Point
- TCPIP Connection
- Value Logging
- Alarm Interlock Control
- Up to 64 x 8 Points/Server

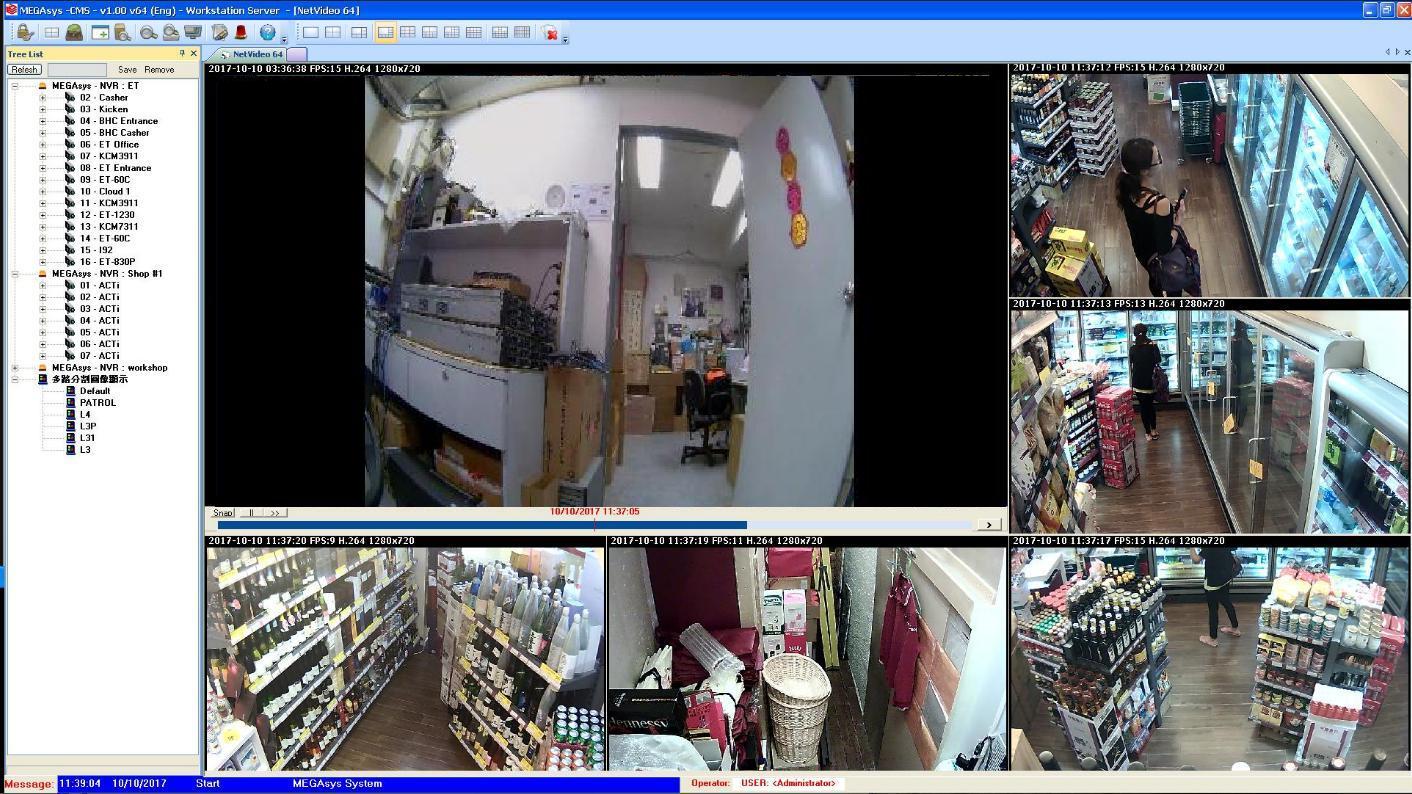

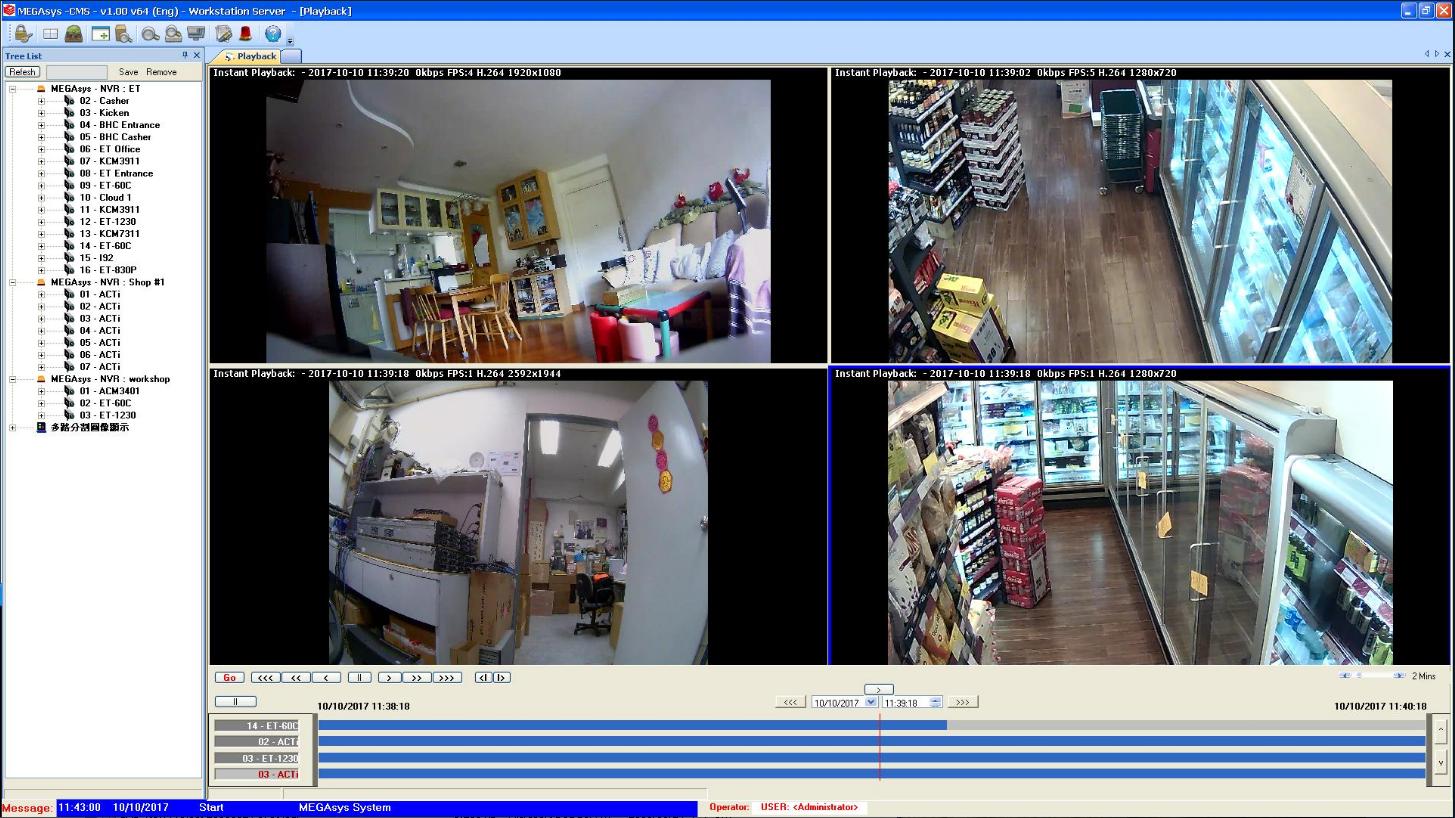

MEGAsys v1.0 Hybrid CMS Workstation
- Manage unlimited number of NVR/DVR servers and IP cameras
- Live view with 1, 4, 9, 10, 16, 25, 32, 36, 49, 64, 72 and 100 layouts
- Live videos from different NVR/DVR servers into single layout
- 4-channel synchronized playback
- Two-way audio, multi-channel audio broadcast
- PTZ Control, H.264, MPEG-4, MJPEG
Compatible NVR/DVR:
ACTi, iSAP, DSS, Softwell MEGAsys...

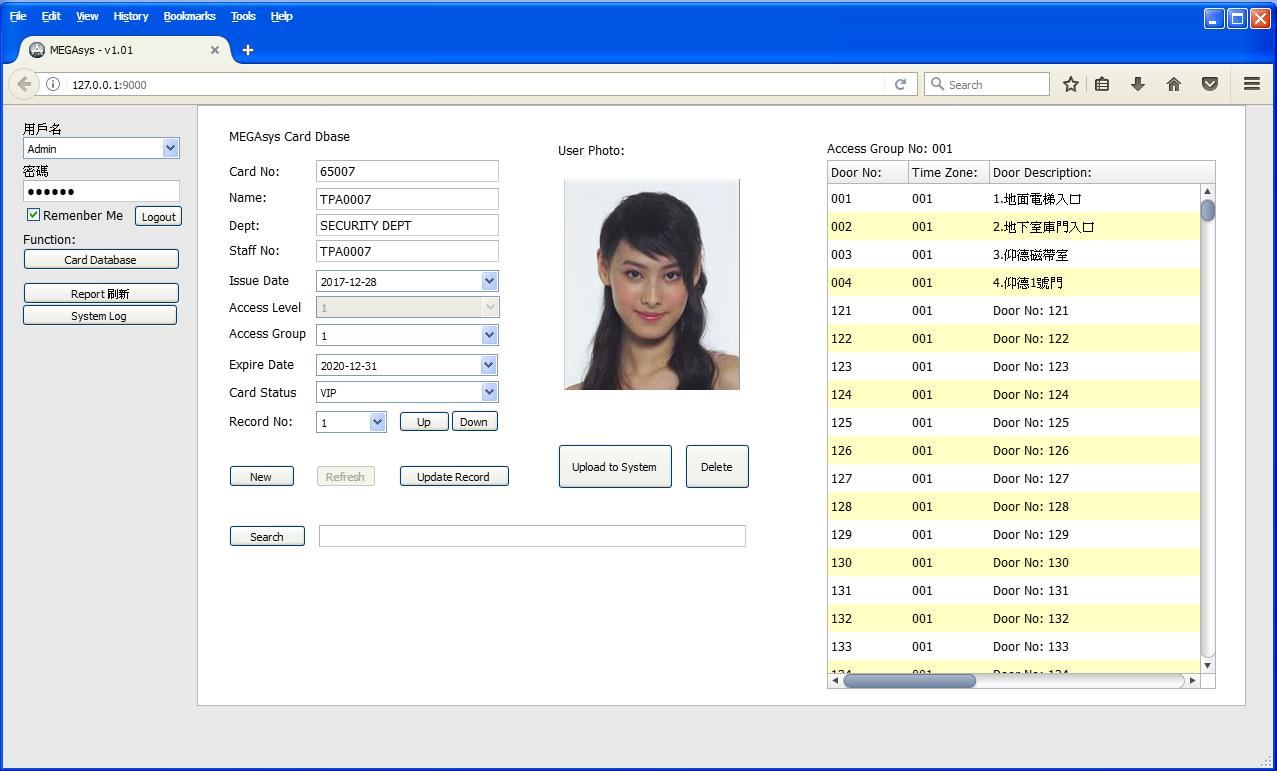

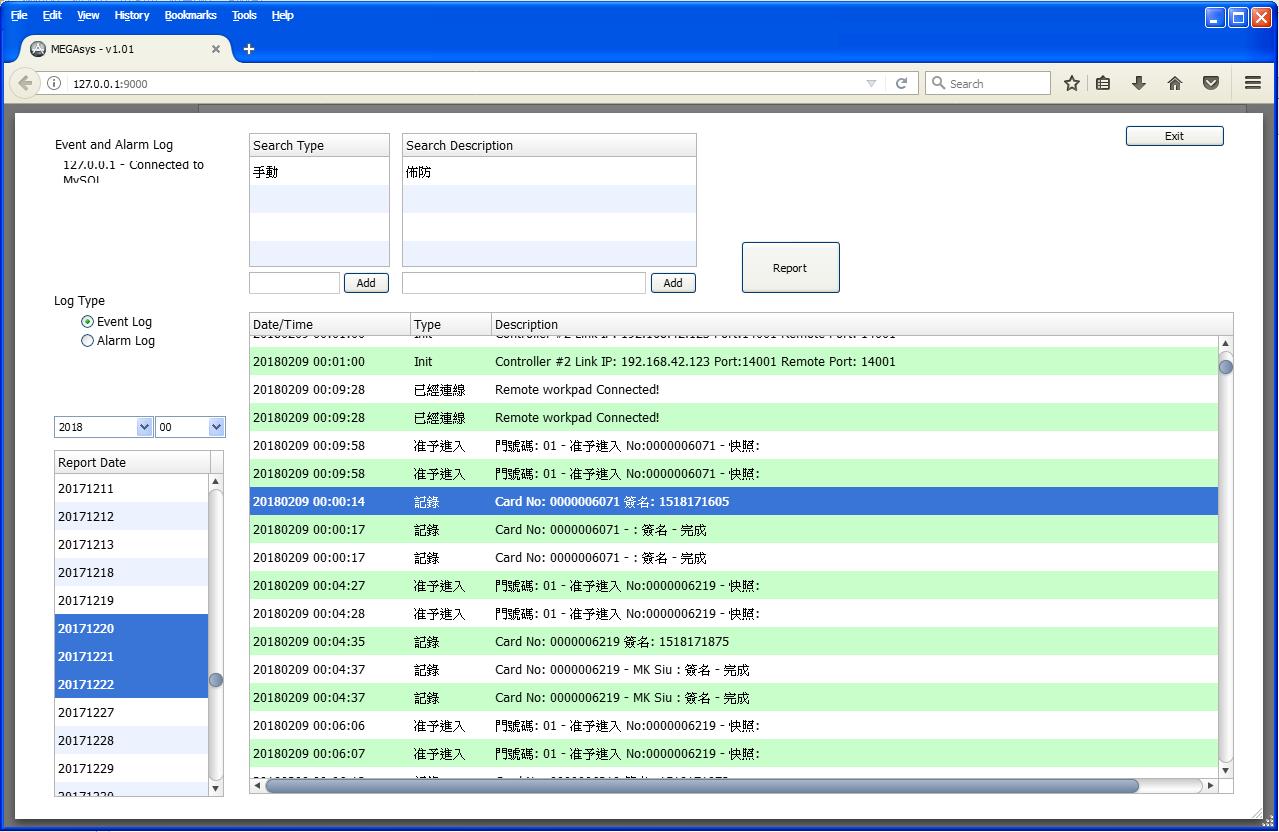

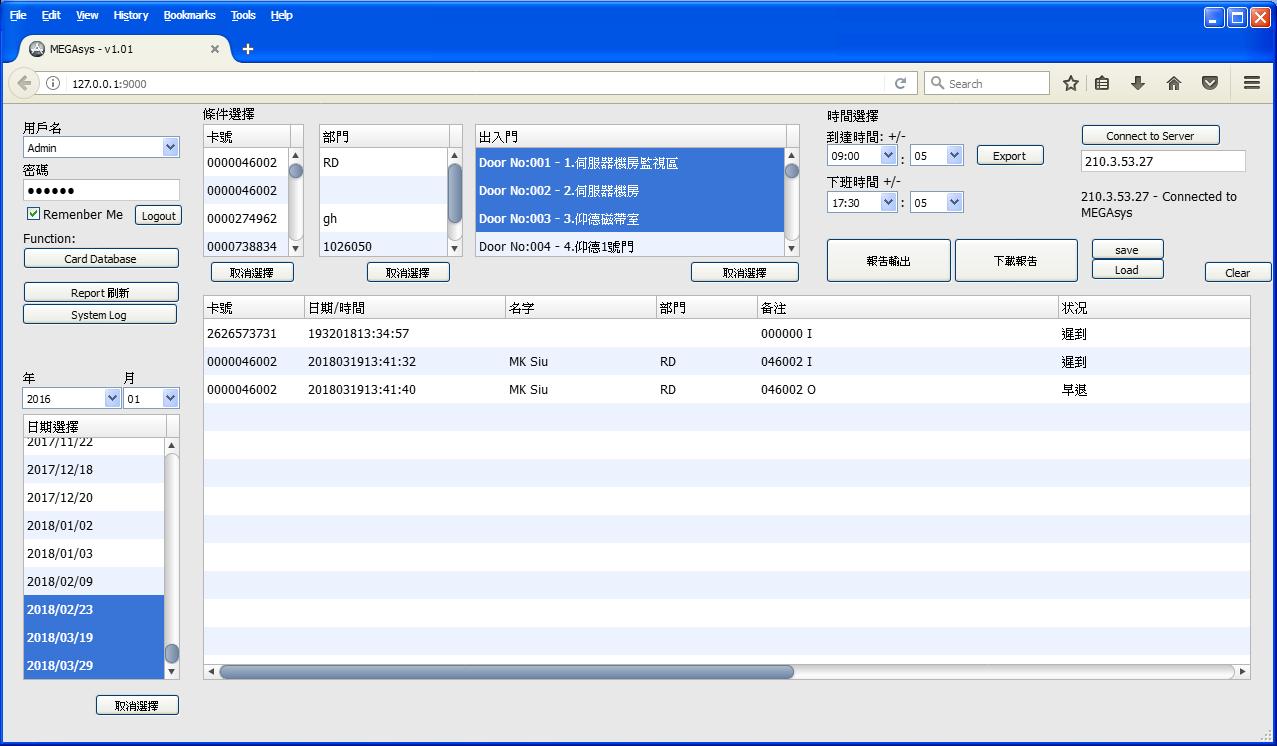

MEGAsys Web Access Control Client - 2018 NEW!

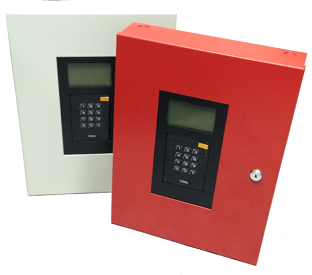

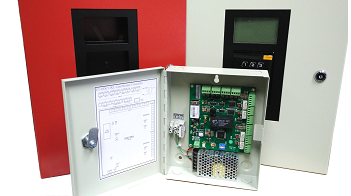

- New 2018 Remote Monitoring Panel
MEGAsys v5.0
CMS / ISMS Central Monitoring System /
Integrated Security Management System.
- 16 /64 Zones Local Control Remote Panel
- LCD Arm/Disarm Control (Keyboard and
Weigend Reader)
- Exit Route Delay Control
- 3/4G GPRS/LTE Network Connection (DHCP)
- Daul Mobile Network/ISP Router Support
- TCPIP/UDP Support, SMS Support
- Watchdog Auto Reconnect
- E.O.L. Temper Cuicurt Protection
- Remote Input/Output Control Support
*Support Integrate to CCTV/Access Control
Integrated Security Management System
Security License No: 1602

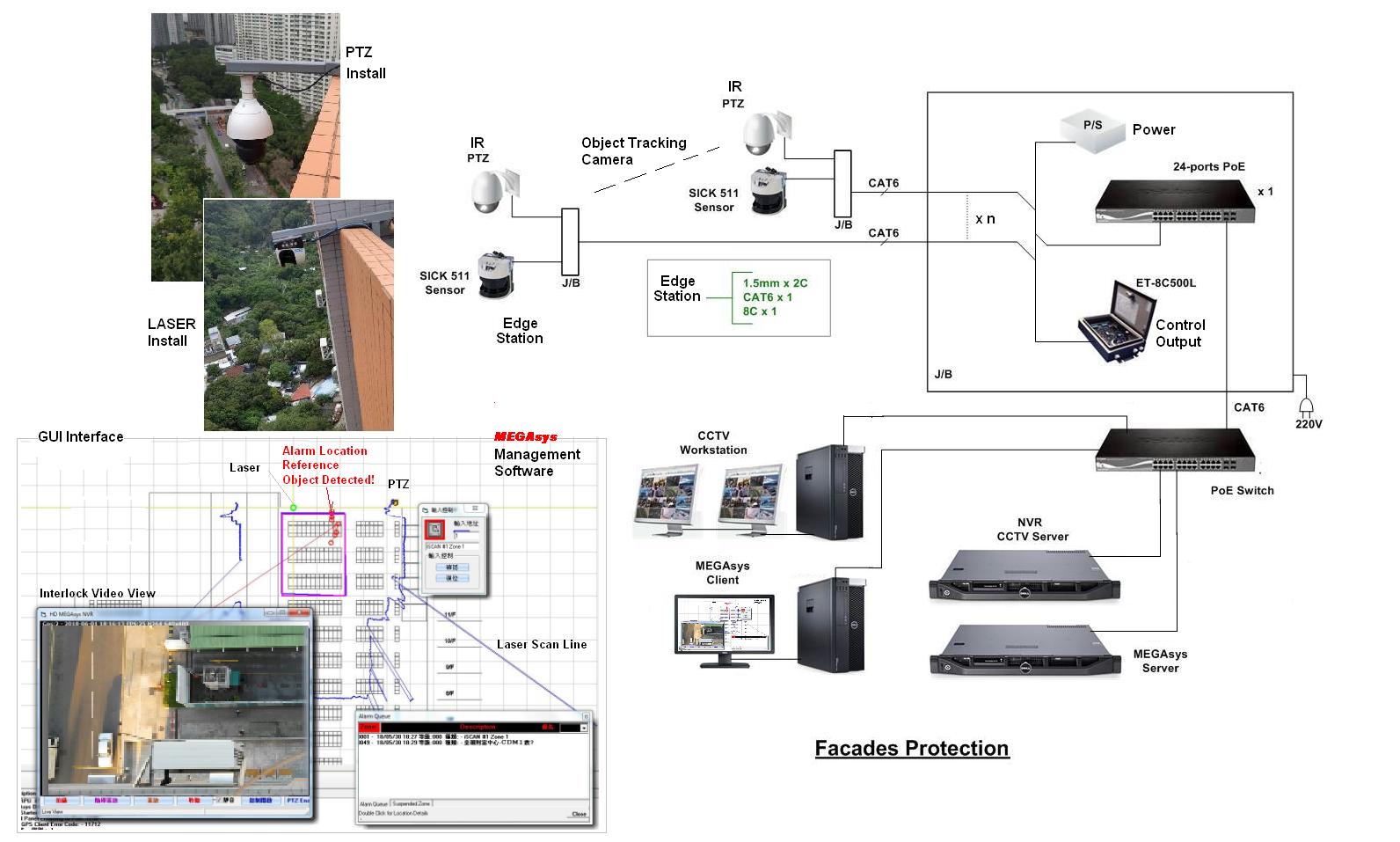

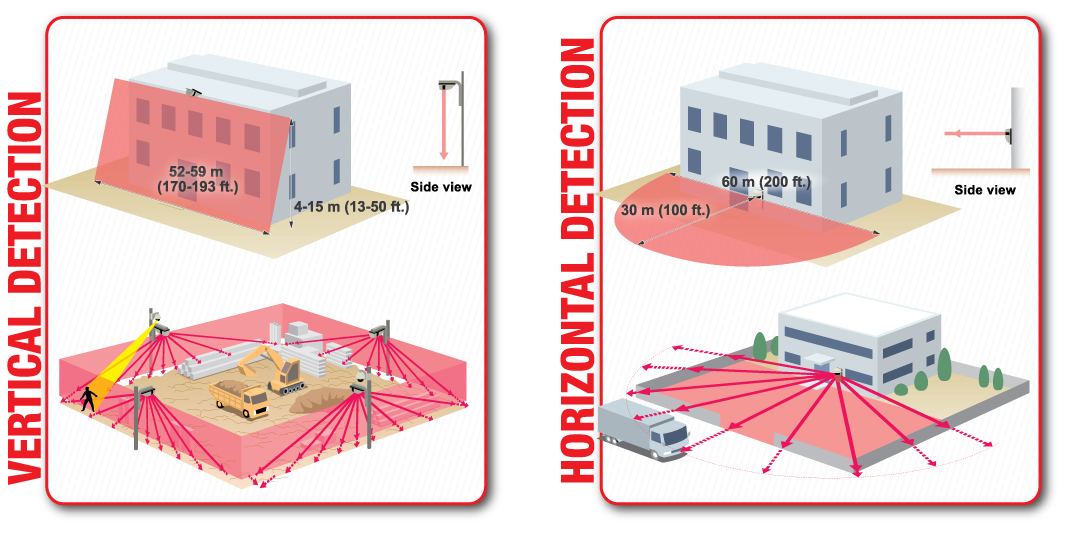

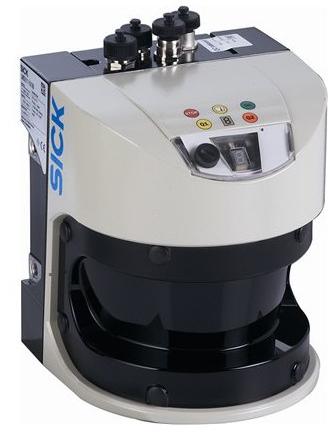

SICK Laser Scan and Optex Redscan Sensor Technology integrated with MEGAsys ISMS
Laser Scan is an innovative laser-scan detector that identifies a moving object’s size, speed, and distance from the detector. It processes that information with a unique algorithm, resulting in a highly reliable detection system with minimal false alarms. With the high demand for this type of unified platforms, system integrators can now offer their customers the addition of Laser scan’s exceptional perimeter security detection features for their government, critical security or high-end large commercial applications.

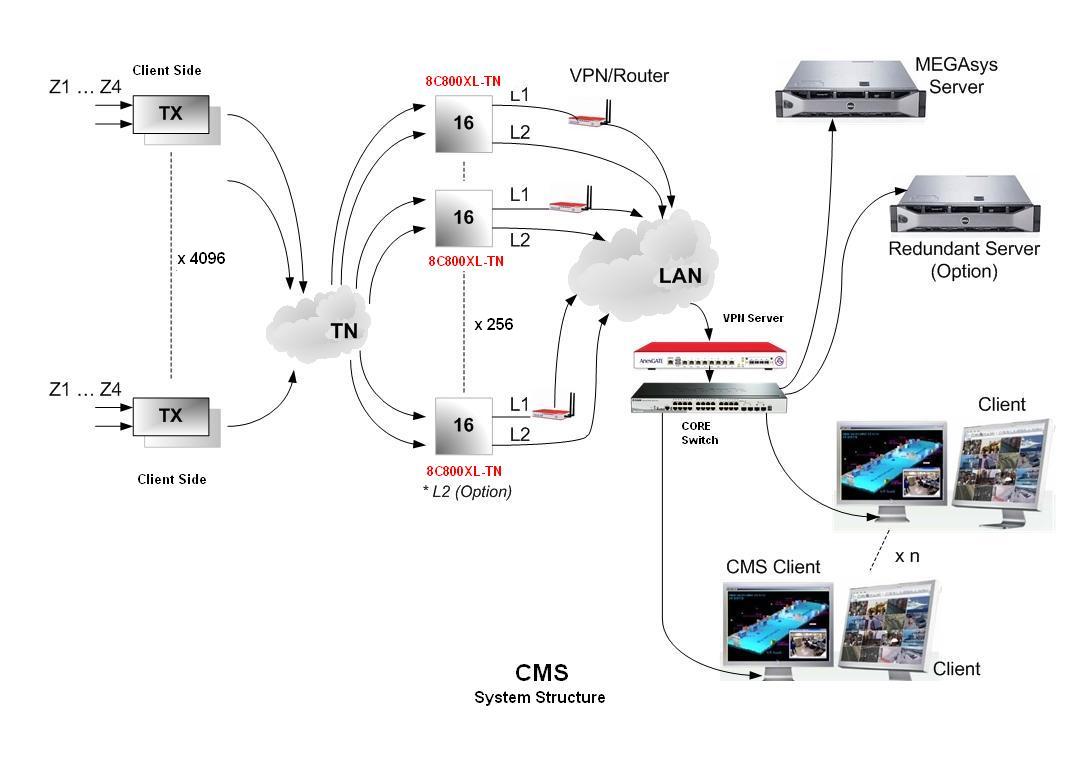

MEGAsys CMS Private Wire Solution
- Private Wire Telephone Network Management System
Direct Link with Private Wire link with Client Alarm Panel
Provided Link Line Management and Protection
- LINE Fault, Lightning Protection
Provded Client Control Status Signal
- Alarm/Secure Mode Control
- AC Power or Battery Fault
- System Tamper
Up to 4,096 Alarm Points
Interlock with IP CCTV Pop up
OPC Link with 3rd System
Hybrid Operation (TCPIP, Telephone)
