MEGAsys ISMS - CCTV Products
Mpg4 Format Recording, Embedded Linux (Optional DOM provides maximum reliability)
4Chs - 16Chs Analogue Video RS170
400 FPS Display/200PFS Recording
NTSC 640 x 480, 320 x 240, PAL 704 x 576, 352 x 288
Water Mark Support
Mpg4 Format Recording, Embedded Linux (Optional DOM provides maximum reliability)
4Chs - 16Chs Analogue Video RS170
400 FPS Display / 400PFS Recording (352x288)
NTSC 640 x 480, 320 x 240, PAL 704 x 576, 352 x 288
Water Mark Support
Manages up to 36 cameras with tree-directory display.
Supports 1, 4, 6, 8, 9, 10, 16, 25, 36 windows layout.
ISO 14496-2 MPEG-4 Video + Audio Format.
Multiple-channel preview in full-screen mode.
Support dual monitor and host-spot window.
Hardware motion detection and Digital I/O event handling.
Maximum 25 seconds pre-event recording.
Search video clips by date, time and event.
Multiple-channel synchronized playback.
Remote Preview / Playback via MEGAsys NVR

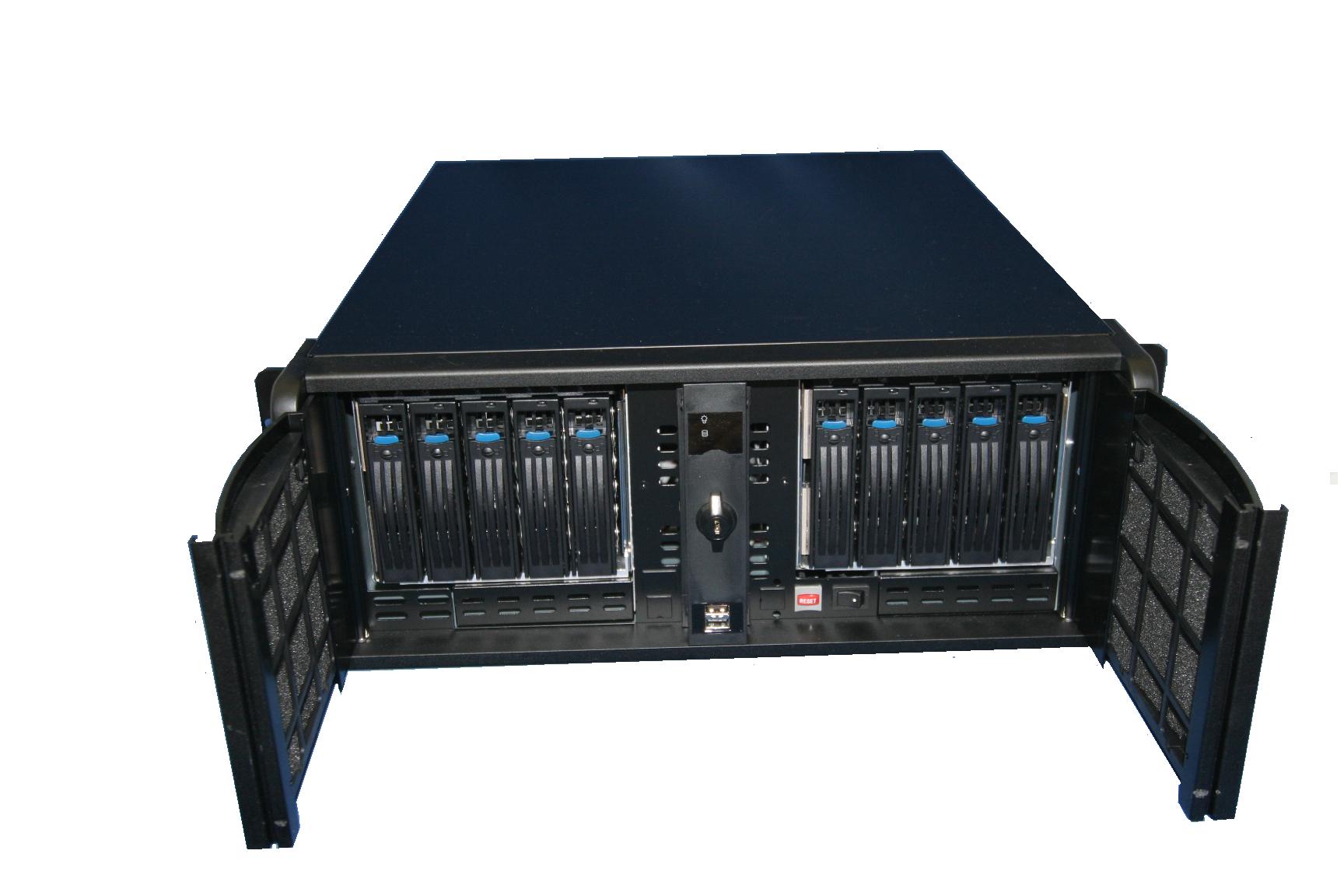

ET-NAS MEGAsys NAS/SAN Backup Server
Up to 500 x 10, Total 5TGB
RAID 1,3, 5 Mode Support
SATA HArd Disk Front Access
Winodws XP/2003 OS

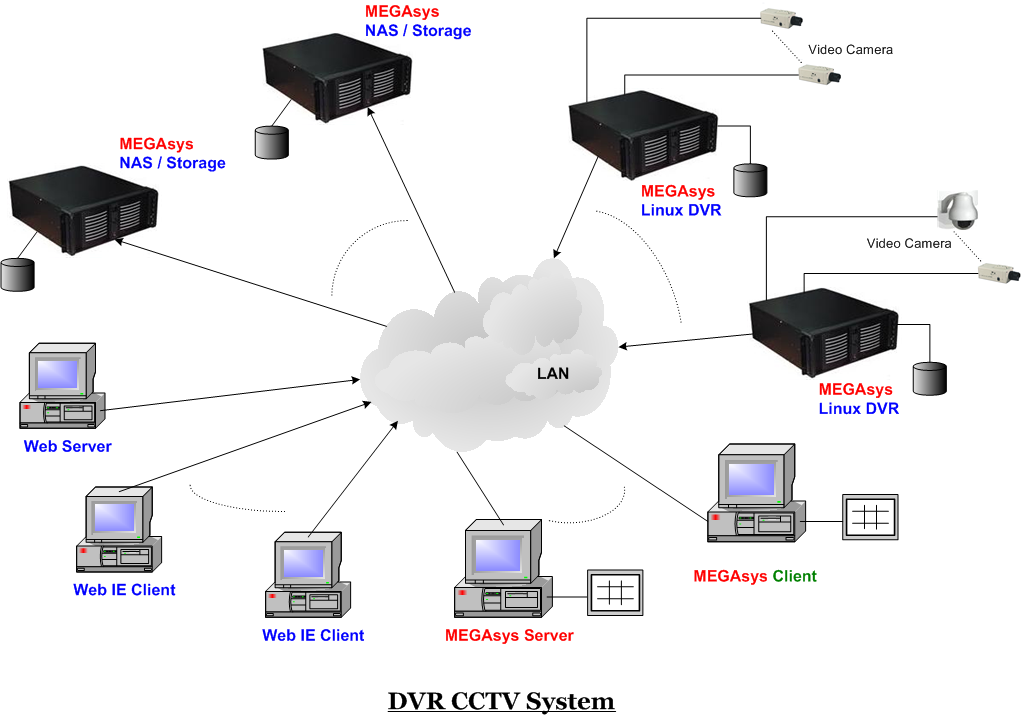

Centralized management of distributed DVRs without geographic constraints
Simultaneously remote video surveillance via multiple stations (IE Browser)
Eliminates false alarm and associated costs by remote visual alarm verification
Less personnel for manned or unmanned remote sites
System can be customized according to your requirement and budget
DVR Main Features
The MEGAsys DVR/NVR is a kind of Digital Video Recorder – DVR, using embedded Linux operating system, digital compression/ decompression and some other concerned technology. It provides the function of display screen split, video switches and records, which can not only provide more time for recording, but also solve the problem of signal attenuation of videotape. Besides its capability to replace tradition video recorders, it’s also excellent in high integration and multifunction, which can be developed into new applications combining Internet, security devices and large storage equipments.
Mpg4 Format Recording, Embedded Linux (Optional DOM provides maximum reliability)
4Chs - 16Chs Analogue Video RS170
400 FPS Display/200PFS Recording
NTSC 640 x 480, 320 x 240, PAL 704 x 576, 352 x 288
Water Mark Support
Mpg4 Format Recording, Embedded Linux (Optional DOM provides maximum reliability)
4Chs - 16Chs Analogue Video RS170
400 FPS Display / 400PFS Recording (704x576)
NTSC 640 x 480, PAL 704 x 576
Water Mark Support
ET-L04s MEGAsys Linux standalone DVR
H264 Format Recording (D1 support)
4Chs - 16Chs Analogue Video RS170
100 FPS Display/100PFS Recording, Video/Audio
NTSC 640 x 480, 320 x 240, PAL 704 x 576, 352 x 288
Water Mark Support

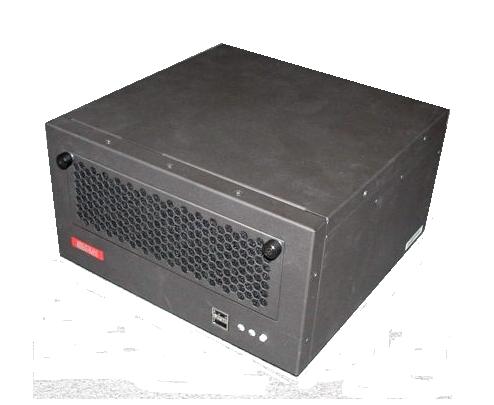

ET-3504 MEGAsys H.264/MPEG4/MJPG Linux Embedded ATM - DVR
H264 Format Recording (D1 support)
4Chs Analogue Video RS170
100 FPS Display/100PFS Recording, Video/Audio
NTSC 640 x 480, 320 x 240, PAL 704 x 576, 352 x 288
Water Mark Support
With 1G SATA HD
Special Design for ATM/POS Machine

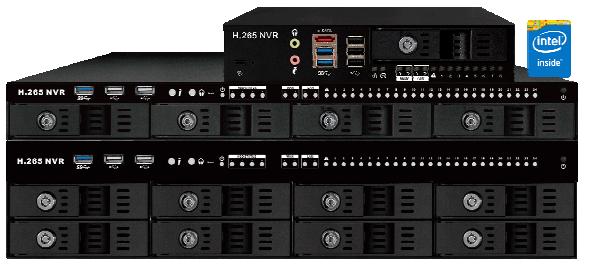

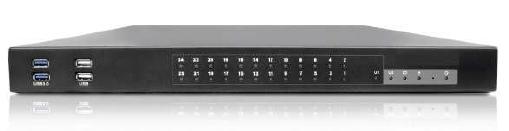

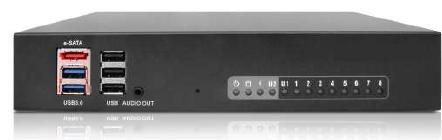

ET-K0 NVR MEGAsys NVR - EmsWin7 OS (Low in Price Version)
Embedded managed switch with high powered PoE output
Records up to 32MB/s of image data
HDMI video out for HD video monitoring
Up to 12 TB effective recording capacity
Up to 128 channels real-time live, record and playback
Up to 640 Mbps of throughput – live and record
Built-in DisplayPort / 2*HDMI display output
Built-in 8 / 16 / 24 PoE port, 802.3af/at
Built-in 2* Giga WAN and 2* Giga LAN
Hardware RAID 0 / 1 / 5 / 10 support (K2 - 16/24 port model)
Up to 8 HDD support (2U model)
